$group in MongoDB Aggregation with examples

In this post, I will be discussing the $group in the MongoDB Aggregation framework. I would take on some examples on $group and various accumulators (operators used along with $group) like $push, $avg, $sum, $min, $max and $addToSet

$group

$group simply groups the input documents based on specified fields and for each distinct group, it outputs the result document. The response will always have unique _id.

Here is an illustration to better understand the concept.

MongoDB $group concept

You can also have computed fields in the $group output. These values will be computed inside the group. If you want to compute a stat across the collection, then you can group by _id: null. We would take an example later.

Let’s first take a simple example of grouping.

Suppose we have a Game database, where we have a collection for storing user info called users and there is another collection where we store game scores called game_scores. We are having the following sample document

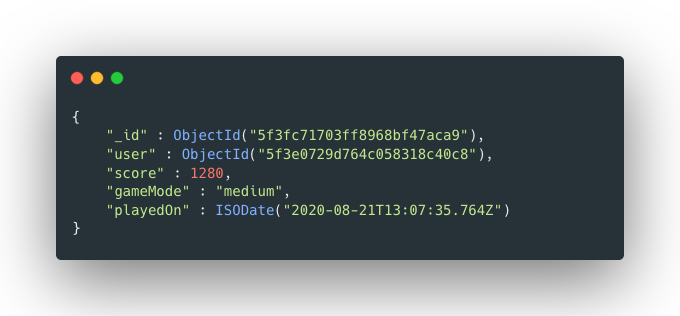

Sample Document Game Scores

Now if we wanted to find out all the unique users who played the game. How would we do code it?

Solution – $group.

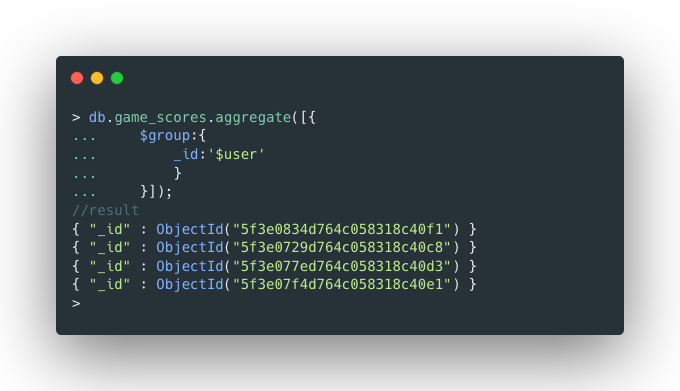

Simple group stage in MongoDB Pipeline

You see that in _id param, we pass $user, because we only want unique users( grouping by user field only), $ denotes that the user field is from input documents.

On the output result, you can see there are 4 unique users who played the game.

Now that you understood the basic concept, let’s move on to accumulators in the $group stage.

Accumulator operators in $group

Accumulator operators are essentially the functions that are applied to fields of input documents other than fields that are “grouped” under “_id”.

In other words, only fields that you can output in the $group other than _id, should be accumulated using the accumulator operator.

All the following sections of this post will give you a fair idea of accumulator operators in the $group.

$push

$push operator pushes the fields in the expression into an array. You will get more clarity with the example.

Let’s continue with the example above. What if we wanted to get all the scores of each unique gamer in the array.

`$push` in `$group` stage example

You see that scores are the new field which is an array with all the $score fields of grouped documents.

$avg

$avg calculates the mathematical average of the field mentioned in accumulator expression.

It ignores the non-numerical values.

A Simple Example

What is the average score of each user in the game?

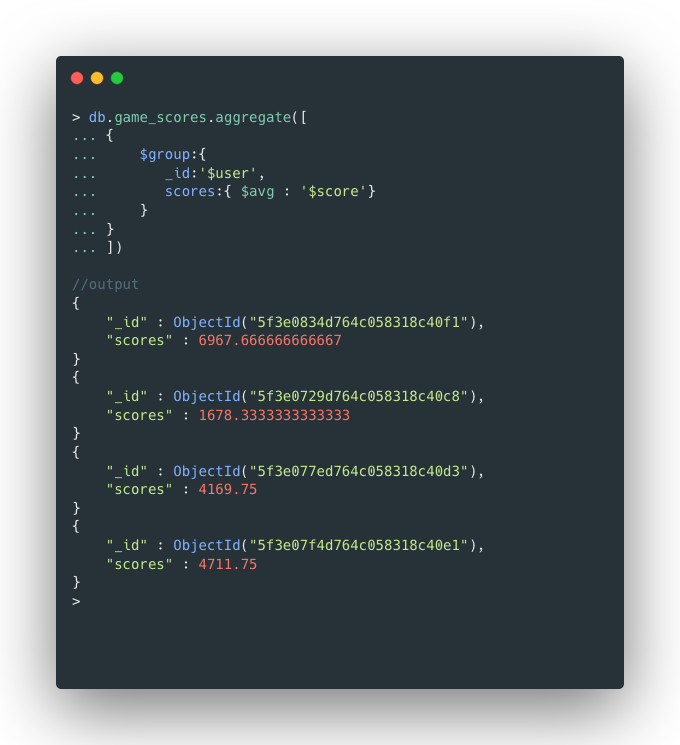

A simple example of $avg accumulator in $group aggregation stage

A little complex example 🙂

Suppose, we wanted to get the average game score of each user in each of the gameMode.

What do we do?

Just add gameMode in the $group.

It’s not that tough 😉

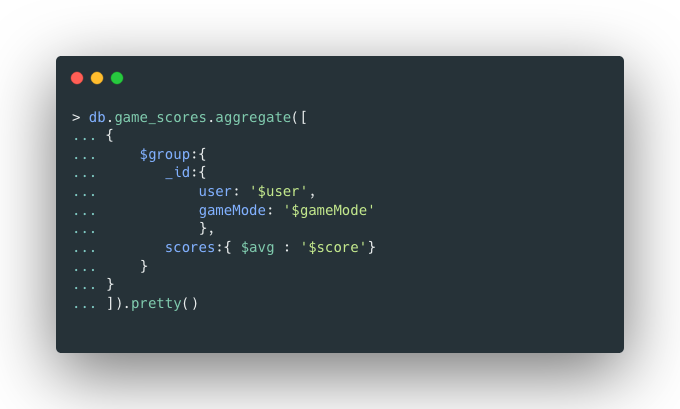

Example 2 for $avg

Notice _id has now changed to an object (this is because now we are grouping with 2 fields, not 1). Here is how the output looks like.

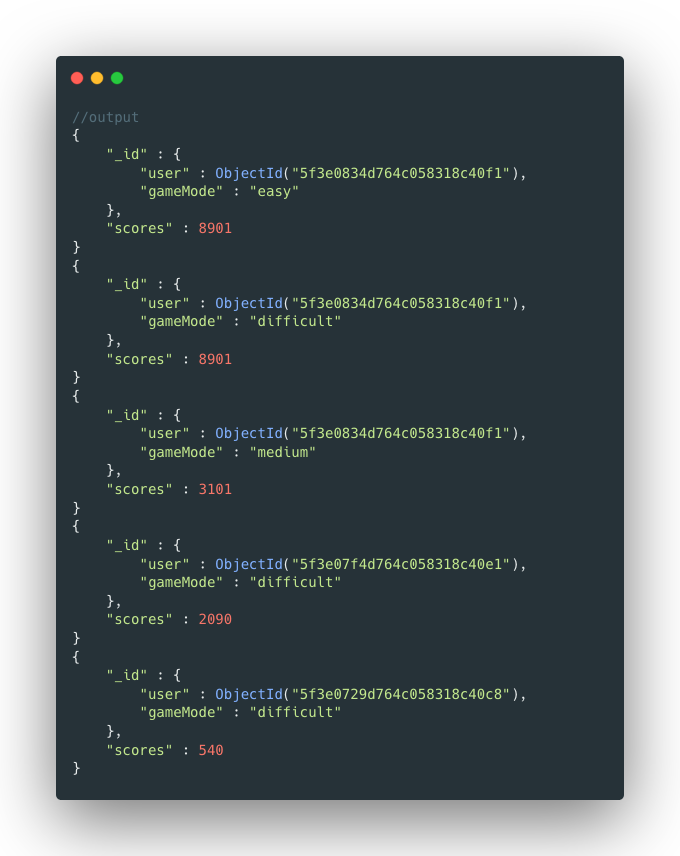

Example output for the group by 2 fields in MongoDB Aggregation

Just observe the first 3 documents in this image. You see the user field is repeated with different gameMode values. So now you have an average score in each difficulty level for each user.

PS: I have truncated the output in this example for simplicity 🙂

$sum

$sum is very similar to $avg. The only difference being $sum calculates the sum (as the name suggests already)

Example for $sum

Suppose, we wanted to calculate the number of times the user has played in each gameMode.

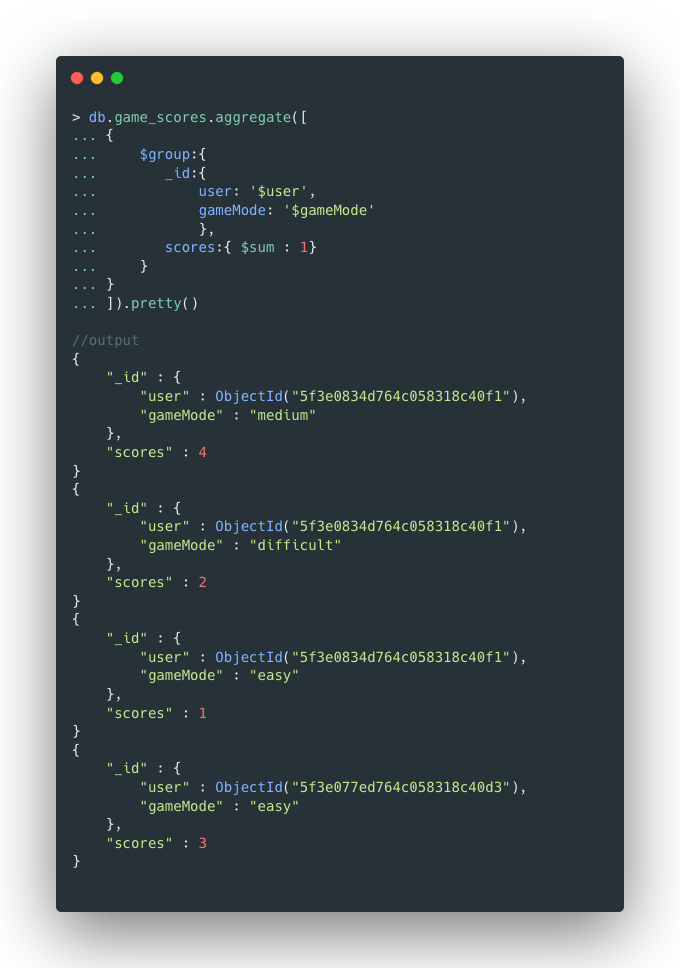

`$sum` in `$group` example

Pretty easy right? The same is possible using $count. But I wanted to demonstrate $sum.

$min

$min calculates the minimum value of non-grouped fields in a grouped set of documents.

Example

How to calculate the minimum score of each gamer?

`$min` in `$group` pipeline of MongoDB

$max

$max calculates the maximum value of non-grouped fields in a grouped set of documents.

Example

Very similar to the previous one, how do we calculate the highest score for each gamer in each gameMode.

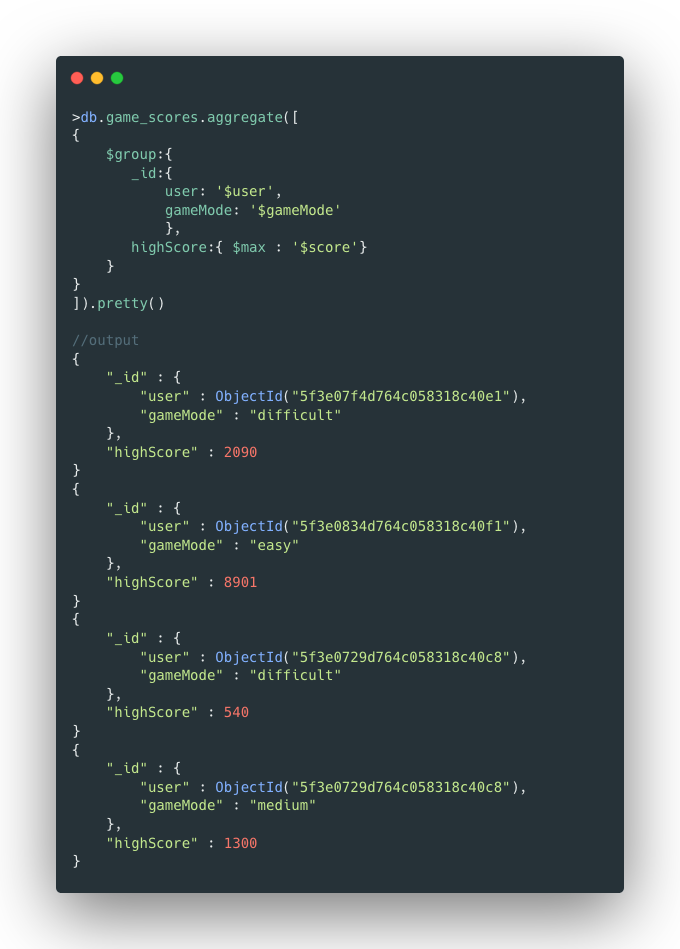

`$max` operator in `$group` example

$first

$first returns the first expression result in the group of documents that share the same $group by key.

This would not be a very meaningful operator if there is no $sort stage before the $group stage. I think you need an example to get more clarification.

Example Suppose, we want to find out the first score of each gamer in our database.

We will sort the game_scores in ascending order of playedOn field. Then we will group by the user and use the $first operator. Here’s how.

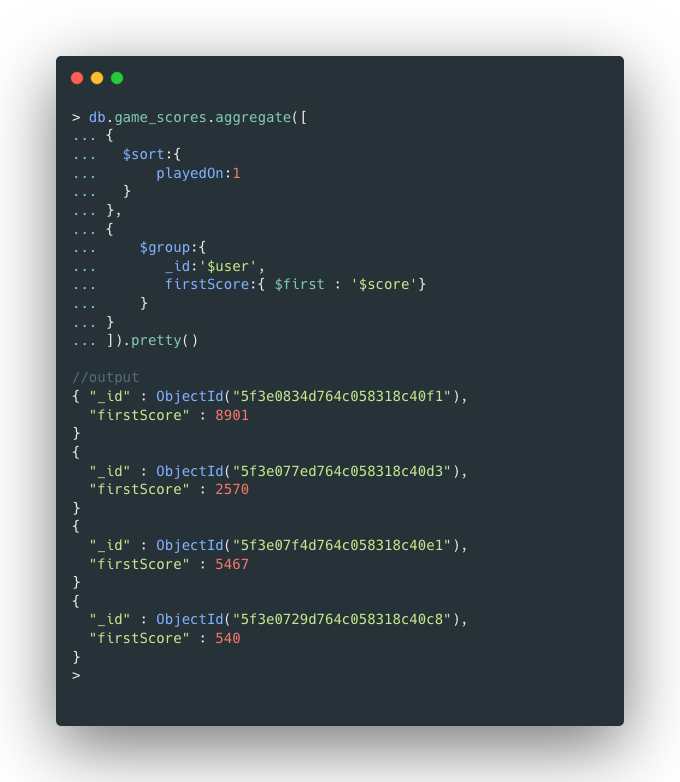

`$first` accumulator operator in `$group` example

If you don’t use $sort as the first stage of the pipeline, then $first will not return any meaningful result

$last

This is very similar to $first and does the exact opposite.

As you might have already guessed, $last returns the last expression result in the group of documents that share the same $group by key.

Example, How to find the latest score of each gamer in our database.

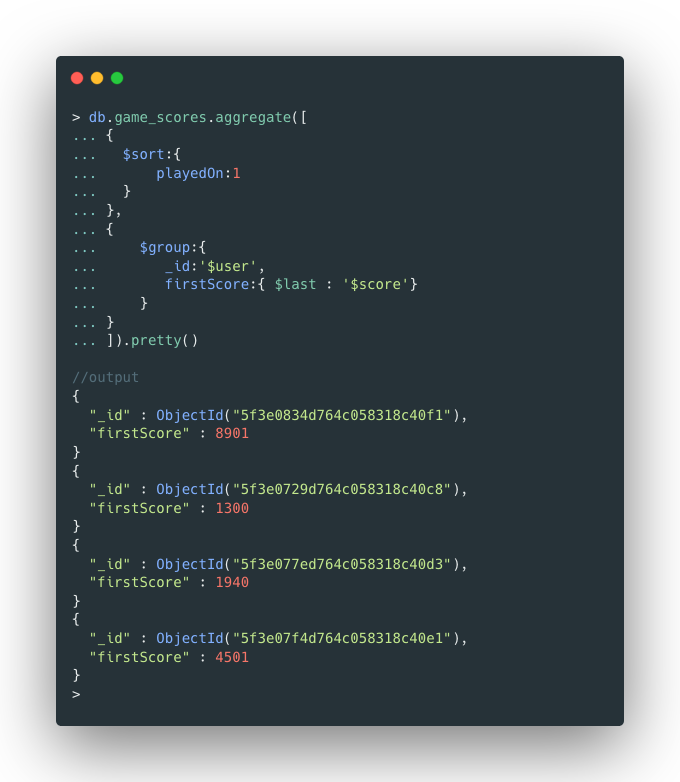

`$last` in `$group` example code input and output

An alternate solution could have been sorting records based on playedOn date in decreasing order and then using $first. You have the choice, but I wanted to demonstrate $last.

$addToSet

$addToSet = $push + only have unique values in the resulting array.

Basically what $addToSet does is, it takes the group of documents with the same $group by _id. And then applies the expression given as an argument (to $addToSet) on each of the documents in the group, and then returns the array with unique results.

Let’s take a quick example

From our game_score collection, what if we needed to find, which game modes did each user play.

There can be some users who only play in difficult mode, others might play only in easy and medium mode. Let’s find out with code.

`$addToSet` example in MongoDB Aggregation Pipeline

Let me know if you still have any doubts about any of these.

Conclusion

In this post, I discussed some basic concepts around the $group which is used in the MongoDB Aggregation Pipeline. I hope the examples were simple enough. Let me know if you have any doubts, Tweet me at @MohitSehgl

Be in touch, will see you in the next post. Happy Coding 🙂
